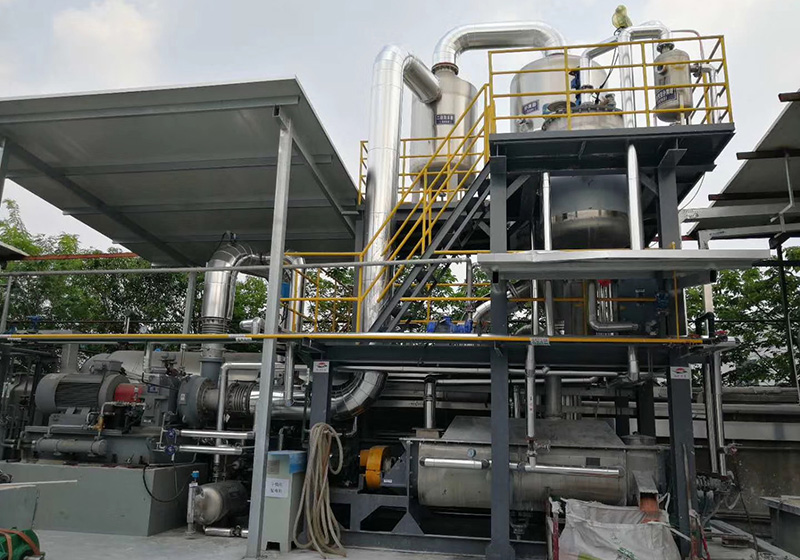

DZ Series Single-Effect External Circulation Evaporator
Features This equipment is consists of tubular external heater,vacuum evaporator and auxiliary device . It features as bellow:
1.Short heating time
2.rapid evaporation speed and can keep the effectiveness of thermos-sensitive …
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Description
Principle
This equipment is consists of tubular external heater,vacuum evaporator and auxiliary device . It features as bellow:
1. Short heating time
2.rapid evaporation speed and can keep the effectiveness of thermos-sensitive material well .
It adopts foam-removing with two -grade and can reduce the loss of feed liquid greatly .
Simple structure ,easy cleaning .
Large Concentration radtio ,the largest could be 1.35 g/cm3.
The parts touched with materials are made of good quality of stainless steel,which meet the heath requirement of pharmacy and food .
Applications
This equipment is suitable for evaporation process of liquid materials in the industries of pharmacy ,food ,chemical industry ,light industry,etc.
Technical Parameters
|
item Spec
|
DZ-350 |
DZ-500 |
DZ-700 |
DZ-1000 |
DZ-1500 |
DZ-2000
|
|
Evaporation capacity (kg/h) |
350 |
500 |
700 |
1000 |
1500 |
2000 |
|
Steam pressure(MPa) |
0.25 |
0.25 |
0.25 |
0.25 |
0.25 |
0.25 |
|
Heating Area (M2) |
13 |
16 |
20 |
30 |
50 |
70 |
|
Condensing Area(M2) |
7 |
8 |
10.5 |
18 |
25 |
25 |
|
Cooling Area(M2) |
1.5 |
2 |
3 |
5 |
7 |
10 |
|
Vacuum degree(MPa) |
0.08 |
0.08 |
0.08 |
0.08 |
0.08 |
0.08 |
