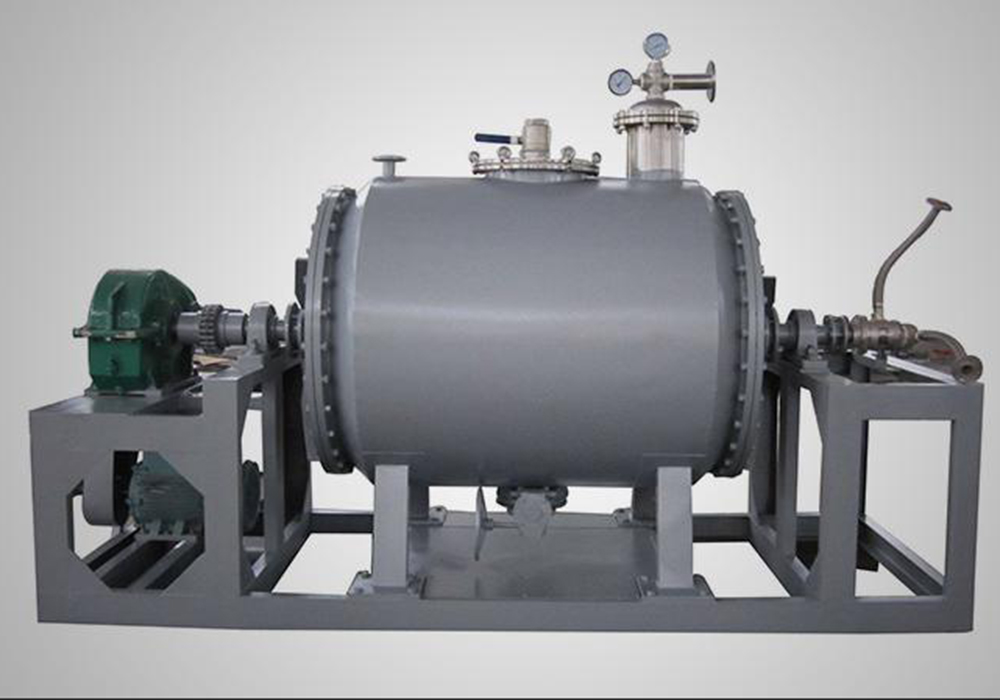

ZPG Vacuum Rake Dryer
ZPG vacuum rake dryer is a new type of horizontal intermittent vacuum drying equipment. The wet material is conductively evaporated. The scraper stirrer continuously removes the material on the hot surface and forms a circulating flow in the container. The water evaporated and pumped out by a vacuum pump. This machine adopts a large area sandwich heating method, large heat transfer surface, high thermal efficiency, set agitation, so that the material in the cylinder to form a continuous cycle of state, to further improve the material ...
Working Principle
This machine is a novel horizontal intermittent type vacuum drying equipment . The wet material is conductively evaporated. The scraper stirrer continuously removes the material on the hot surface and forms a circulating flow in the container. After the water evaporates, Vacuum pump out.
Performance Characteristics
◎ This machine uses a large area of sandwich heating, heat transfer surface, high thermal efficiency.
◎ The machine is set to stir, so that the material in the cylinder to form a continuous cycle of state, to further improve the uniformity of the material heated.
◎ The machine is set to stir, so that the slurry, paste, paste material can be dried smoothly.
Adaptable Materials
◎ Pharmaceuticals, food, chemical and other industries conduct the following materials drying:
◎ suitable for paste, paste, powder materials;
◎ heat-sensitive materials that require low temperature drying;
◎ easily oxidized, explosive, strong stimulation, highly toxic materials ;
◎ material recovery requires an organic solvent.
Schematic
Technical Specification
|
project |
model |
||||||
|
name |
unit |
ZPG-500 |
ZPG-750 |
ZPG-1000 |
ZPG-1500 |
ZPG-2000 |
ZPG-3000 |
|
Working volume |
L |
300 |
450 |
600 |
900 |
1200 |
1800 |
|
Heating area |
m 2 |
6 |
7.6 |
9.3 |
12.3 |
14.6 |
19.3 |
|
Stirring speed |
Rpm |
6-30 stepless speed regulation |
|||||
|
power |
Kw |
4 |
5.5 |
5.5 |
7.5 |
11 |
15 |
|
Sandwich design pressure (hot water) |
Mpa |
≤ 0.3 |
|||||
|
Vacuum inside the cylinder |
Mpa |
-0.09 to 0.096 |
|||||
Note: The amount of water evaporation is related to the characteristics of the material and the hot air inlet and outlet temperatures. When the outlet temperature is 90 o C, the water evaporation curve is shown in the above figure (for selection reference). As the product is continuously updated, the relevant parameters are changed without prior notice.
