Principle

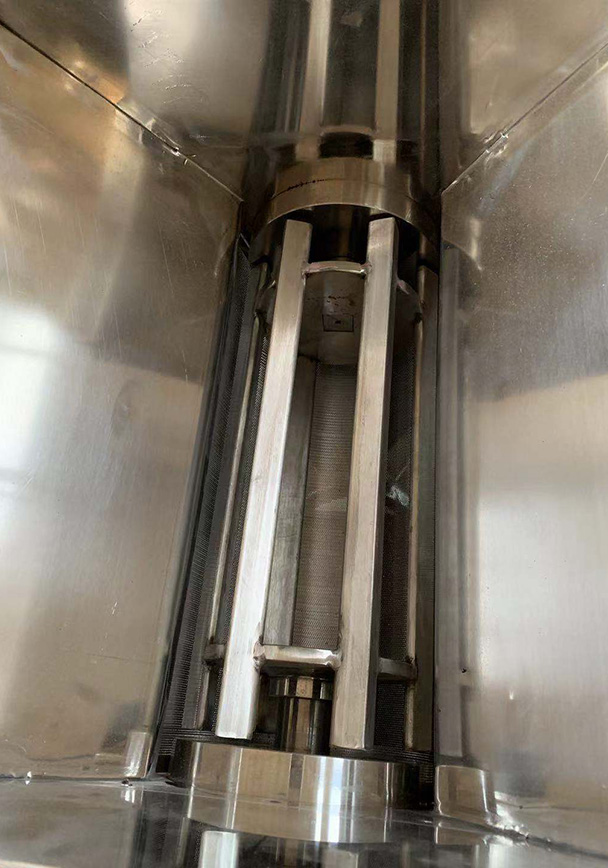

1.This machine use the relatively high speed of and use activities chain-ring between fixed tooth plate, so that was crushed by the chain-ring impact, friction and material collide with each other and get crushed.
2.Crushed material by the centrifugal force, automatically enter the trap bag, dust from the vacuum tank was recovered by filtration bag.
 3.The machine adopts high-quality AISI304 or AISI316L stainless steel, the production process no dust, and can improve the utilization of materials, reduce business costs. Replacement of different particle size is determined by the number of screens.
4. Inside the enclosure (crushing groove) all alveolar by precision machined so as to achieve a smooth surface, easy to clean and change the ordinary mill rough wall, easy to accumulate dust, the phenomenon is difficult to clean, the food, pharmaceutical, chemical and other production line with GMP requirements .
5.The machine structure is simple, robust, smooth operation, the crushed material quickly and evenly, with good results.

Application

The machine(set) is extensively used in chemical, pharmaceutical, food and pesticide industries for grinding dry brittle materials.

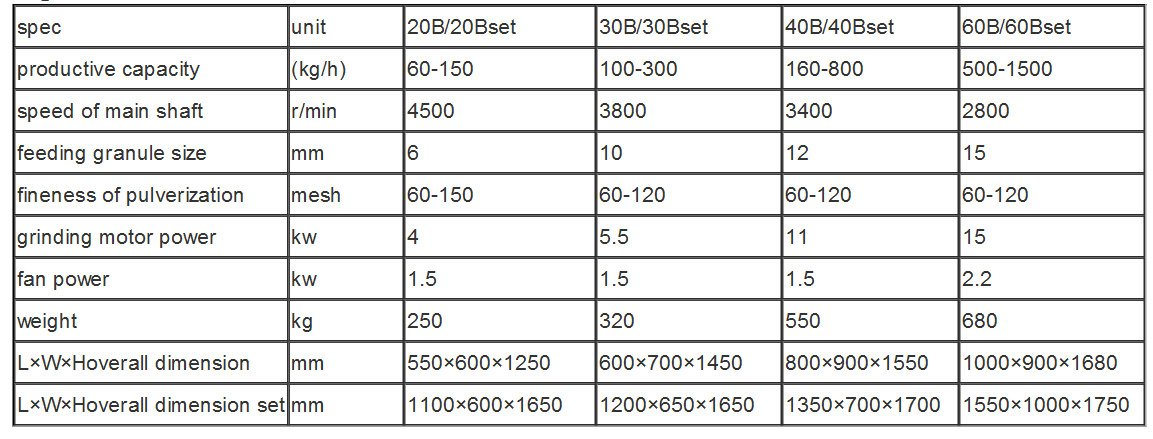

Technical Parameters
