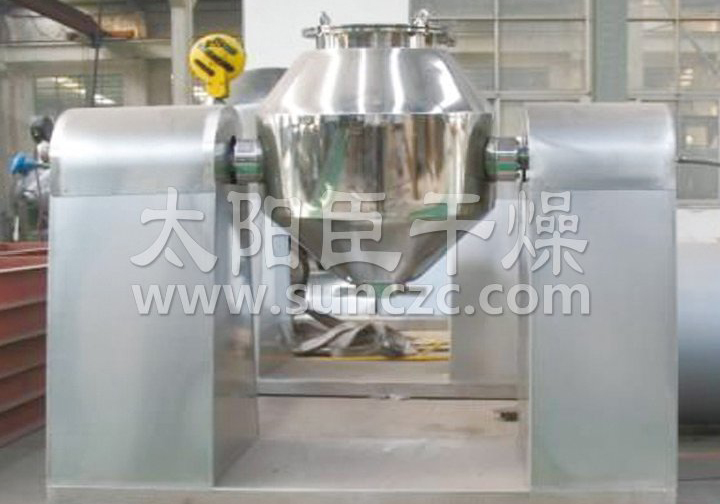

SZH Series Double Cone Mixer
SZH series double cone mixer transfers the powder or granular material into the double cone container through vacuum or manually. As the capacity rotates continuously, the material in the container undergoes complex impact motion to achieve even mixing. The machine saves energy, is easy to operate, has low labor intensity, and has high work efficiency. This machine is suitable for the mixing of powdery and granular materials in the pharmaceutical, chemical, food, building materials and other industries.
Performance Characteristics
◎ This machine will send powder or granular material into the double cone container through vacuum or artificial feeding. With the continuous rotation of the container, the material will perform complex impact movement in the container to achieve even mixing.
◎ The machine saves energy, is easy to operate, has low labor intensity, and has high work efficiency.
Adaptable Materials
◎ This machine is suitable for the mixing of powdery and granular materials in the pharmaceutical, chemical, food, building materials and other industries.
Technical Specifications
| Specifications\Project | Total volume L |
Working volume L |
Feeding amount kg |
Feed speed rpm |
Power kw |
Weight kg |
| 0.05 | 50 | 25 | 15 | 25 | 0.55 | 500 |
| 0.15 | 150 | 75 | 45 | 20 | 0.75 | 650 |
| 0.3 | 300 | 150 | 90 | 20 | 1.1 | 820 |
| 0.5 | 500 | 250 | 150 | 18 | 1.5 | 1250 |
| 1 | 1,000 | 500 | 300 | 15 | 3 | 1800 |
| 1.5 | 1500 | 750 | 450 | 12 | 4 | 2100 |
| 2 | 2000 | 1,000 | 600 | 12 | 5.5 | 2450 |
| 3 | 3000 | 1500 | 900 | 9 | 5.5 | 2980 |
| 4 | 4000 | 2000 | 1200 | 9 | 7.5 | 3300 |
| 5 | 5000 | 2500 | 1500 | 8 | 7.5 | 3880 |
| 6 | 6000 | 3000 | 1800 | 8 | 11 | 4550 |
| 8 | 8000 | 4000 | 2400 | 6 | 15 | 5200 |
| 10 | 10000 | 5000 | 3000 | 6 | 18.5 | 6000 |
