Product Introduction

The machine is fully enclosed. All parts are made of stainless steel. It is equipped with a three-stage purification device, and the filtered air reaches 100,000 grades. The cylinder and the top are equipped with a cold wall device, so that the wall temperature is < 80°C, and an air brush tower device is installed in the drying tower. The traditional Chinese medicine extract powder dried by this machine will not appear coking and metamorphic phenomena, greatly increasing the rate of powder collection (over 95%), and it will not produce mixed drug phenomenon and sticky wall phenomenon.

Principle Of Work

The traditional Chinese medicine extract high-speed centrifugal sprayer is the application of centrifugal spray drying technology in the drying of specific materials, and also uses high-speed centrifugal atomizer to disperse the material into a mist, fully contact with hot air, complete instantaneous drying, and form powder. Finished product drying device.

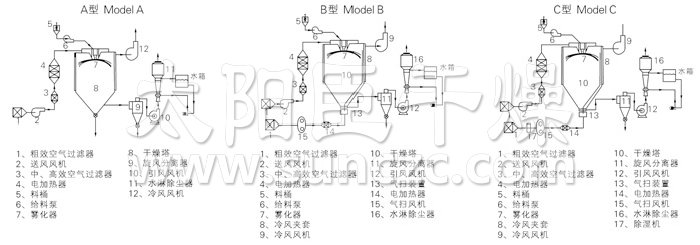

Schematic

Performance Characteristics
 ◎The tower body has cold air jacket;
 ◎The tower body is equipped with automatic vibration device;
 ◎The tower body, pipelines are equipped with quick opening cleaning holes and drain holes;
 ◎Can be equipped with automatic control thermostatic feeding tank;
 ◎Can be equipped with manual high pressure washing tower Accessories:
 ◎ The part in contact with the material is made of stainless steel; (or made of stainless steel);
 ◎ The material is collected using a two-stage cyclone dust removal device, or a level
 ◎ cyclone dust collector and a wet dust collector;
 ◎ The inlet air temperature is automatically controlled And continuous devices.
 ◎ can be equipped with air sweep device.
